- Digital Camera
- Push sewer inspection Camera
- Pan / Tilt / Zoom
- Special Features
- Waterproof / Weatherproof
- Horizontal resolution
- Pan:360degrees; Tilt: 180degrees
- Camera diameter
- Water-resistance level

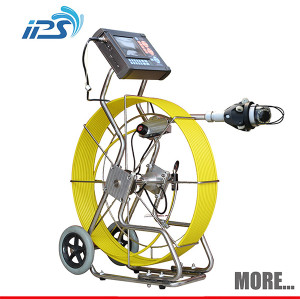

The P-50A pipe inspection camera boasts the most dependable push rod inspection camera system from China,featuring 700TVL pan/tilt camera head,a robust cable reel,a state-of-heart-art LCD monitor,camera centering brackets and optional sonde and locators for pinpoint locations of buried pipes and utilities. With protection-to-guiding spring on the head,this camera can handle video survey job for pipes with 90-degree bends. To locate sewer-line block,structure fracture or bad joints, illumination is a crucial factor to evaluate the complete system.P-50A has 18 Ultra -bright dimmable led lights to ensures every part of the inner pipe wall is perfectly and non-shadow illuminated. Made with cutting-edge technology,this compact and versatile push camera ensures you a 30 percent less system break down,meaning your workers can do more work and an enlarged revenue for your company.
This push camera is usually for pipes diameter from 60mm to 400mm.
Pan: 360degrees; Tilt: 180degrees
Bright 18 pcs LED SMD
Brightness of the LEDS
Size of the screen
5.7’’ TFT Monitor
4G(up to 32G)
The distance will be displayed on the screen (Optional)
To make sure the camera is in the center of the pipe
SD-1058 Camera Head
● Designed for pipes DN 60 - 400mm
● 1/4” 700TVL SONY CCD camera sensor
● Camera diameter:58mm
● 360 pan, 180 tilt
● Auto leveling:always upright image
● Waterproof level: IP68
● 18 LED lights
● Material: Aluminum
● Auto focus
5.7" Sunlight presentable LCD Monitor
● Brightness: 500cd/㎡
● Sunlight Viewable TFT Screen clearly displays details inside pipes
● One stop control software integrated: Camera rotation,video recording,snapshots, control lighting system,ect.
● Built-in 8500mAh rechargeable and changeable battery
● Text overlay without extra keyboards to profile pipe inner conditions
● USB datas
Camera Centering Bracket
● To ensure center-position of the camera head inside pipes
● Diameter 95, 150, 250 brackets available
● Fast installation and removal in one minute
IPS was started with a simple goal ,to provide our Chinese customers ,who were engaded in water monitoring and/or municipal sewer line inspection and rehabilitation ,with affordable devices.
* In 2009,we began our business with self-made multi-direction endoscope.But it was not very sucessful at that time.
* In 2013,we came back with SINGA crawlers,which was equipped with powerful illumination to capture and record pipe defects.
* In2015,we added explosion-proof and motor-driven cable drum to our carriage.And setted out to develop our own UV curing,3D sonar/laser system.
Thanks to continuous efforts in customers' oriented technical innovations and excellent service ,IPS has witnessed a series of huge success.Now we are the leading manufacturer of pipeline CCTV inspection equipment in China ,and we are ready to lead international pipe inspection&rehabilitation industry in the future.
