135 Degrees Auto Tilt Manhole Inspection Camera
135 Degrees Auto Tilt Manhole Inspection Camera
Model
SD-1000V3.0

Item specifics

Style
manhole inspection camera
Sensor
700tvl Sony CCD
Technology
Pan / Tilt / Zoom
Special Features
Waterproof / Weatherproof
CCD Type
1/4 EX-view HAD CCD
Camera Horizontal resolution
700 TVL
Waterproof
IP68
Display size
5.7''TFT Monitor
Memory card
32G
Detect distance
60m

Review

Description

135 Degrees Auto Tilt Manhole Inspection Camera135 Degrees Auto Tilt Manhole Inspection Camera135 Degrees Auto Tilt Manhole Inspection Camera



E36B manhole inspection camera is designed to facilitate rapid inspections of tanks,manholes, tunnels,sewer mainline and other lateral pipelines facilities. This robust unit allows for one man operation with a scalable telescopic rod. The pole camera is integrated with high-intensity dimmable LED lights,which can provide better proportioned illumination.These lights last much longer than standard halogen and HID bulbs. The camera sensor features 36 x optical zooming function, capable to capture pipe details from a distance up to 80m.The camera body tilts automatically up 45°and down 45°. If desired,a laser ranging can be mounted on this manhole inspection camera.The manhole camera is made with our strict quality control system to guarantee its water-resistance and explosion-proof for inspections in sewer, water, and waste mainlines, ducts and pipes.


Parameters


Application

The pipe inspection camera is mainly used for pipe inspection, large-scale tank inspection, drains inspection, tunnels inspection…

Model

SD-1000II manhole inspection camera

Camera

CCD Type

1/4 Ex-view HAD CCD

Horizontal resolution

540TVL

Optical system

3.9-90mm

Zoom

312=26× optical; 12×digital

View distance

100m

Detection distance

60m

Tilt automatically

Up30°; down: 180°

LED Lights

8 LEDS(Dimmer control)

LED 1: 3pcs, 3*5W; LED 2: 3pcs, 3*5W; LED3: 2pcs, 2*10W

Projection angle

9°*6,   30°*2

Display&

Storage system

Size of the screen

6.5’’ TFT Monitor

Brightness

500cd/m2

Resolution

640*480

Video format

MPEG4/AVI

Picture format

MPEG

Memory card

4G(optional to 8G)

USB interface

USB output

Power supply

Battery

DC12V  13000mah

Working time

Standby(LED off): 12hours;

In operation(LED on): 4hours

Telescopic rod

Length

6meters(optional to 12meters)


Details:

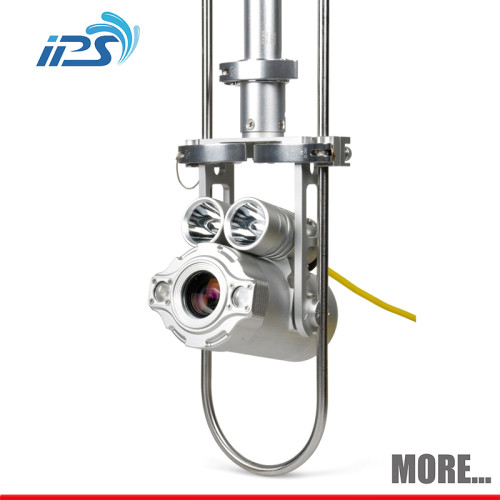

135 Degrees Auto Tilt Manhole Inspection Camera





*    Portable, single-operator manhole camera

*    Advanced EX-view HAD CCD camera sensor

*    Detect distance: up to 80m

*    U-shape probe guarantees better image stabilization

*    Adjustable Super Bright LED illumination

*    Automatically tilt: up 45°; down: 45°

*    Powerful zoom: 36×optical zoom; 12×digital zoom

*    700 TVL horizontal resolution

*    Telescopic rod with length up to 6.7m(9/12m optional)

*    Waterproof (IP68)







* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

135 Degrees Auto Tilt Manhole Inspection Camera











*   5.7" TFT Monitor

*    Sunlight presentable

*    Detachable design

*    Capture video data and snapshots

*    All featured display&monitor

*    Text overlay





* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

135 Degrees Auto Tilt Manhole Inspection Camera






*    Robust telescopic rod

*    Standard length 6.7m(9/12m optional)

*    Safe operation from potential electric shock.

*    Light-weight







IPS was started with a simple goal ,to provide our Chinese customers ,who were engaded in water monitoring and/or municipal sewer line inspection and rehabilitation ,with affordable devices.

        *  In 2009,we began our business with self-made multi-direction endoscope.But it was not very sucessful at that time.

        *  In 2013,we came back with SINGA crawlers,which was equipped with powerful illumination to capture and record pipe defects.

        *  In2015,we added explosion-proof and motor-driven cable drum to our carriage.And setted out to develop our own UV curing,3D sonar/laser system.

Thanks to continuous efforts in customers' oriented technical innovations and excellent service ,IPS has witnessed a series of huge success.Now we are the leading manufacturer of pipeline CCTV inspection equipment in China ,and we are ready to lead international pipe inspection&rehabilitation industry in the future.
