Portable Pole Mounted Video Manhole Inspection Camera V3
- Model
- SD-1000V3.0
Item specifics
- Style
- Pole mounted inspection camera
- Tilt automatically
- Up45°; down: 45°
- Special Features
- Waterproof / Weatherproof
- CCD Type
- 1/4 EX-view HAD CCD
- Camera Horizontal resolution
- 700 TVL
- Waterproof
- IP68
- Display size
- 5.7''TFT Monitor
- Memory card
- 4G(8G also available)
- Detect distance
- 60m
- Screen Brightness
- 500cd/m2
Review
Description

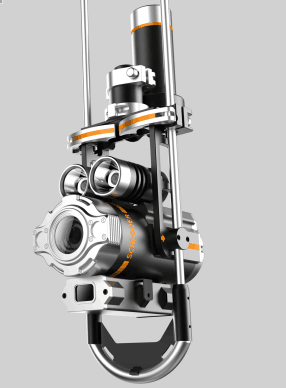

E36B Manhole Inspection Camera is designed to facilitate rapid inspections of tanks,manholes, tunnels,sewer mainline and other lateral pipelines facilities. This robust unit allows for one man operation with a scalable telescopic rod. The pole camera is integrated with high-intensity dimmable LED lights,which can provide better proportioned illumination.These lights last much longer than standard halogen and HID bulbs. The camera sensor features 36 x optical zooming function, capable to capture pipe details from a distance up to 80m.The manhole pole camera body tilts automatically up 45°and down 45°. If desired,a laser ranging can be mounted.The manhole camera is made with our strict quality control system to guarantee its water-resistance and explosion-proof for inspections in sewer, water, and waste mainlines, ducts and pipes.
Parameters
Application | The Manhole Inspection Camera is mainly used for pipe inspection, large-scale tank inspection, drains inspection, tunnels inspection… | |
Model | SD-1000II Manhole Inspection Camera | |
Camera | CCD Type | 1/4 Ex-view HAD CCD |
Horizontal resolution | 540TVL | |
Optical system | 3.9-90mm | |
Zoom | 312=26× optical; 12×digital | |
View distance | 100m | |
Detection distance | 60m | |
Tilt automatically | Up30°; down: 180° | |
LED Lights | 8 LEDS(Dimmer control) | LED 1: 3pcs, 3*5W; LED 2: 3pcs, 3*5W; LED3: 2pcs, 2*10W |
Projection angle | 9°*6, 30°*2 | |
Display& Storage system | Size of the screen | 6.5’’ TFT Monitor |
Brightness | 500cd/m2 | |
Resolution | 640*480 | |
Video format | MPEG4/AVI | |
Picture format | MPEG | |
Memory card | 4G(optional to 8G) | |
USB interface | USB output | |
Power supply | Battery | DC12V 13000mah |
Working time | Standby(LED off): 12hours; In operation(LED on): 4hours | |
Telescopic rod | Length | 6meters(optional to 12meters) |
Details:
* Portable, single-operator manhole camera
* Advanced EX-view HAD CCD camera sensor
* Detect distance: up to 80m
* U-shape probe guarantees better image stabilization
* Adjustable Super Bright LED illumination
* Automatically tilt: up 45°; down: 45°
* Powerful zoom: 36×optical zoom; 12×digital zoom
* 700 TVL horizontal resolution
* Telescopic rod with length up to 6.7m(9/12m optional)
* Waterproof (IP68)
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
* 5.7" TFT Monitor
* Sunlight presentable
* Detachable design
* Capture video data and snapshots
* All featured display&monitor
* Text overlay
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
* Robust telescopic rod
* Standard length 6.7m(9/12m optional)
* Safe operation from potential electric shock.
* Light-weight
