- Digital Camera
- PTZ crawler
- Pan / Tilt / Zoom
- Special Features
- Waterproof / Weatherproof
- Camera head
- PTZ camera head
- Image sensor
- 1/4 Sony CCD (130 degree wide angle)
- 120X (10X optical & 12X electronic)
- S200 with manual lift and 2 sets tires
- 12.2'' touch LCD display
- 2021/4/10 21:02
This compact submersible cctv camera system is widely used to inspect sewer network or to do other kinds of cctv survey to pipeline with a diameter from 200mm to 1500mm.
The submersible cctv camera system features a 540TVL sony CCD camera sensor,which can provide clear image for engineers to assess the pipe conditions and rate its defects.
Video data from camera head is transferred to our sunlight viewable monitor.Operator can easily regulate crawler's motion,cable winding or unwinding via a wireless control box.
|Product classification||Pan and tilt submersible cctv camera|
|Inspection range||approx.DN 200 and up|
|Weight||approx. 17 kg|
|Lighting||4 led lights.|
|Protection class||IP 68|
|Permissible ambient temperature||-20 to 55 celsius|
|Pressure monitoring||Integrated pressure sensor continuously monitors inner pressure|
|Panning range||270-degree endless pan|
|Angle of rotation||Continuous|

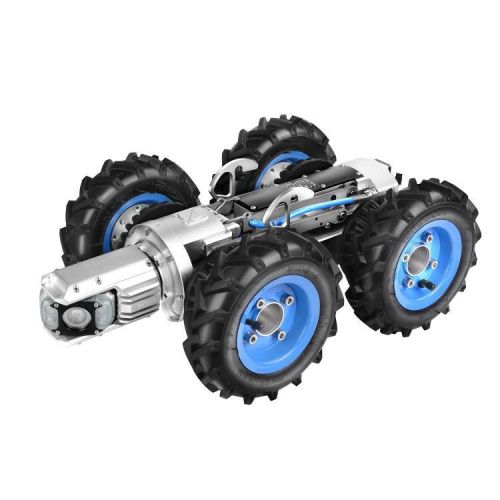

- Crawler for 8" to 59" lateral sewer mainlines.
- Steerable to traverse bend pipes and navigate over obstacles.
- Manual controlled camera-lift to ensure the camera head in the center position of the pipe.
- Two sizes tires inside the package.
- 4-wheel drive can travel forward,reverse and turn around.
Camera Head Camera sensor:
- 。 1/4” 700TVL Sony CCD
- 。 Sensitivity: 0.01 LUX;Capable of working in the dark
- 。 Zoom:120 times (10X optical, 12X digital)
- 。 Illumination:4*10w High brightness LED lights
- 。 Rotation: 360°pan, 270°tilt
- 。 Auto leveling;Auto focus 55
- 。 Working temperature: -20℃~55℃
- 。 Diameter: 90mm
- 。 Weight: 2.2KG
- 。 Waterproof level: IP68
- 12.1“ sunlight viewable touch control LCD
- Record inspections to 64GB SSD
- Water-proof standard:IP53
- All featured software regulates crawler motion,cable
- reel winding up and persistently measures pressure,
- slope and distance,ect.
SD9991E+ Cable Reel
- 。 Optional manual or auto cable winding up component;
- 。 Material: Aviation aluminum+PC plastic
- 。 Meter-counter:Distance constantly displayed on screen;
- 。 erro<10cm
- 。 Waterproof: IP53;
- 。 Reinforced semi-rigid cable;
- 。 Load capacity:150KG.OD:9mm
- 。 120m standard cable length
IPS was started with a simple goal ,to provide our Chinese customers ,who were engaded in water monitoring and/or municipal sewer line inspection and rehabilitation ,with affordable devices.
。 In 2009,we began our business with self-made multi-direction endoscope.But it was not very sucessful at that time.
。 In 2013,we came back with SINGA crawlers,which was equipped with powerful illumination to capture and record pipe defects.
。 In2015,we added explosion-proof and motor-driven cable drum to our carriage.And setted out to develop our own UV curing,3D sonar/laser system.
Thanks to continuous efforts in customers' oriented technical innovations and excellent service ,IPS has witnessed a series of huge success.Now we are the leading manufacturer of pipeline CCTV inspection equipment in China ,and we are ready to lead international pipe inspection&rehabilitation industry in the future.
