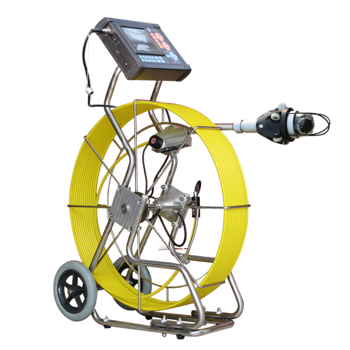

Endoscope CCTV Detection Drain Inspection Camera System
Endoscope CCTV Detection Drain Inspection Camera System
Endoscope CCTV Detection Drain Inspection Camera System
Model
P50B

Item specifics

Type
Digital Camera
Style
Sewer camera
Sensor
CCD
Technology
Pan / Tilt / Zoom
Special Features
Waterproof / Weatherproof
Camera head diameter
50mm
Resolution
480TVL
CCD type
SONY CCD
Pan and tilt
360 degree 180 degree
Waterproof
IP68

Product review

Description

Endoscope CCTV Detection Drain Inspection Camera SystemEndoscope CCTV Detection Drain Inspection Camera SystemEndoscope CCTV Detection Drain Inspection Camera System



Our push rod drain camera are very useful for inspection of  pipeline, sewer pipe, normal pipeline, broken pipe, tank, vessels, Ventilation tube and so on.


Application

This drain camera is usually for pipes diameter from 60mm to 400mm.

Model

SD-1050II

Camera

CCD Type

SONY CCD

Horizontal resolution

480TVL

Diameter

50mm

Pan &Tilt

Pan: 360degrees; Tilt: 180degrees

Auto level

Auto

Focus

Manual

Optical system

2.8mm

LED Lights

LED Lights

Bright 18 pcs  LED SMD

Brightness of the LEDS

Controllable

Display&Storage system

Size of the screen

5.7’’ TFT Monitor

Brightness

500cd/m2

Resolution

640*480

Video format

MPEG4/AVI

Picture format

MPEG

Memory card

4G(up to 32G)

USB interface

USB output

Character input

Video

Resolution

720*576

Meter counter

The distance will be displayed on the screen (Optional)

Cable

Length

30-140m (optional)

Bracket

Centering

To make sure the camera is in the center of the pipe

Power supply

chargeable Battery

DC12V/14.8V 13500mah


Camera Head :

Endoscope CCTV Detection Drain Inspection Camera System

Camera head with skids:

Customers can customize a camera heads with different sizes brackets.

Endoscope CCTV Detection Drain Inspection Camera System

Endoscope CCTV Detection Drain Inspection Camera System



Transmiter  is Optional


Endoscope CCTV Detection Drain Inspection Camera System



5.7'' TFT Screen Allows Text Overlay

Endoscope CCTV Detection Drain Inspection Camera System
