S300E HD Pipe Inspection Robot Crawler for drains

S300E HD Pipe Inspection Robot Crawler for drains
S300E HD Pipe Inspection Robot Crawler for drains
S300E HD Pipe Inspection Robot Crawler for drains
S300E HD Pipe Inspection Robot Crawler for drains
S300E HD Pipe Inspection Robot Crawler for drains
Model
S300E

Item specifics

Type
Pipe inspection camera
Style
Robotic Crawler
Cable Drum
Motor-driven/ Manual
Cable Length
120M-300M
Application Range
DN 300 and Up
Waterproof
IP68
Extension
3D laser profiler,sonar,ect
Reporting Software
Compatible with Wincan

Product review

Description

S300E is a crawler camera which can be used to inspect a wide range of pipes, duct work, and industrial sites. The crawler comes with an interchangeable HD pan tilt zoom camera head and a 120 meter (394 ft.) cable reel(with other length optional). These units are great for inspecting pipes from 300-2000mm (12’’ –80 inches).



Product Highlights:

· Durable and Easy-to-Use Crawler Type Inspection System;

· Waterproof Pan-and-Tilt Zoom HD Camera;

· High-quality, Super Sensitive CMOS Image Sensor;

· Front and Rear camera for better inspection;

· Wheel Sets with Different Diameter Wheels;

· Adjustable Speed;

· 12.1” Monitor with remote control box;

· Integrated 256GB storage, WinCan Compatible.



SPECIFICATION

 90mm Camera system

1). Image sensor: 1/3 Panasonic COMS; Resolution: 1080P; Illumination: 0.01 LUX;

2). zoom: 120 times (10X optical, 12X digital);

3). Light source: 10 High brightness LEDs, 4*3w, 6*4w

4). Axial-rotation 360°, Radial-rotation 270°;

5). Auto level;auto focus;

6). Working temperature: -20℃-55℃;

7). Diameter: 90mm, length: 165mm;

8). Weight: 1.4KG;

9). Waterproof level: IP68.

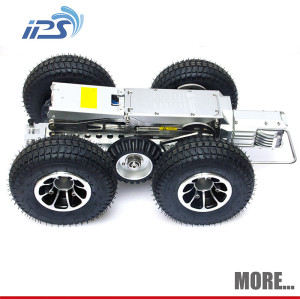

 S300 Crawler system

1). For 300-2000mm diameter of pipes with 2 types of tires, manual lifting platform;

2). Moving speed: 0-18m/minute, two-wheeled drive,Swiss motor 2*270W;

3). Working voltage: 48V,max output power 270w

4). Move forward/backward,turn left/right;

5). Climbing ability: ≤30°, load capacity: 35KG;

6). Injected with 12PSI pure gas, workable underwater 10 meters,IP68 waterproof level;

7). Working temperature: -20℃-55℃;



 •7 Inch Display controller

1). Touch screen: High precision touch screen, the operating system more convenient.

2). Display: 12.1 inch high bright display equipped with 256G hard disk.

3). Display data: speed, distance, pressure , Inclination sensor, time can be displayed on the screen.

4). Resolution: 1024*768.

5). Picture format: JPG

6). Video format: AVI/MPEG4

7). Can generate a pipe report directly.


•Manual Cable Drum(Motorized one for option)

1) Electronic meter counter, distance can be directly displayed on the screen.

2) Cable length: 120m(100-150m optional)

3) Motorized cable reel(optional), the cable rolls in and rolls out automatically.

4) Size: 780mm*410mm*490mm.

•Remote control box

1). Push-button encoder control image zoom in and out more precisely;

2).Joystick controls the front camera motion crawling movement offer more flexible and convenient operation;

3). Working within 10 meters.
