- Pipe inspection camera
- Robotic Crawler
- Cable Drum
- Motor-driven/ Manual
- Cable Length
- Application Range
- DN 300 and Up
- 3D laser profiler,sonar,ect
- Reporting Software
- Compatible with Wincan

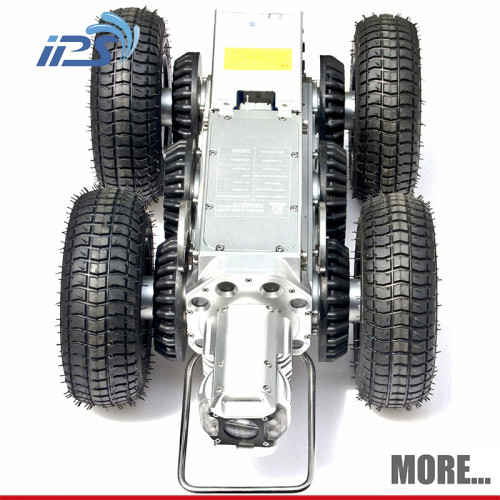

S300 Sewer Camera is specially designed to assess big pipes.With powerful auxiliary illumination system,s300 can light up and record details in pipes DN300 and up.
The camera system features a 540TVL sony CCD camera sensor,which can provide clear image for engineers to assess the pipe conditions and rate its defects.
Video data from camera head is transferred to our sunlight viewable monitor.Operator can easily regulate crawler's motion,cable winding or unwinding via a wireless control box.
|Product classification||pipe inspection crawler robot|
|Inspection range||approx.DN 300 and up|
|Weight||approx. 17 kg|
|Lighting||4 led lights.|
|Protection class||IP 68|
|Permissible ambient temperature||-20 to 55 celsius|
|Pressure monitoring||Integrated pressure sensor continuously monitors inner pressure|
|Panning range||270-degree endless pan|
|Angle of rotation||Continuous|
|Sewer Camera resolution||540TVL|
- * Crawler for DN300-2000mm lateral sewer mainlines.
- * Steerable to traverse bend pipes and navigate over obstacles.
- * Manual controlled camera-lift to ensure the camera head in the center position of the pipe.
- * Two sizes tires inside the package.
- * 4-wheel drive can travel forward,reverse and turn around.
Sewer Camera Sensor:
- * 1/4”540TVL Sony CCD
- * Sensitivity: 0.01 LUX;Capable of working in the dark
- * Zoom:120 times (10X optical, 12X digital)
- * Illumination:4*10w High brightness LED lights
- * Rotation: 360°pan, 180°tilt
- * Auto leveling;Auto focus 55
- * Working temperature: -20℃~55℃
- * Diameter: 90mm
- * Weight: 2.2KG
- * Waterproof level: IP68
- * 12.1“ sunlight viewable touch control LCD
- * Record inspections to 64GB SSD
- * Water-proof standard:IP53
- * All featured software regulates crawler motion,cable
reel winding up and persistently measures pressure,
slope and distance,ect.
- * Size:L426mm*W266mm*H52mm
SD9991E+ Cable Reel
- * Optional manual or auto cable winding up component;
- * Material: Aviation aluminum+PC plastic
- * Meter-counter:Distance constantly displayed on screen;
- * erro<10cm
- * Waterproof: IP53;
- * Reinforced semi-rigid cable;
- * Load capacity:150KG.OD:9mm
- *120m standard cable length
