Sewer Drain Camera And Locator Rental Lowes|underwater cctv camera|pipe inspection crawler robot
- Pipe inspection camera
- Robotic Crawler
- Cable Drum
- Motor-driven/ Manual
- Cable Length
- Application Range
- DN 300 and Up
- 3D laser profiler,sonar,ect
- Reporting Software
- Compatible with Wincan
S300 Sewer Camera And Locator is a good investment for company enaged in water monitoring or trenchless works.
With clear video image, it can be applied to profile large storm pipe or sewer mains.
S300 Sewer Camera Locator is specially designed to assess big pipes.With powerful auxiliary illumination system,s300 can light up and record details in pipes DN300 and up.
The camera system features a 540TVL sony CCD camera sensor,which can provide clear image for engineers to assess the pipe conditions and rate its defects.
Video data from camera head is transferred to our sunlight viewable monitor.Operator can easily regulate crawler's motion,cable winding or unwinding via a wireless control box.
|Product classification||Sewer Camera And Locator|
|Inspection range||approx.DN 300 and up|
|Weight||approx. 17 kg|
|Lighting||4 led lights.|
|Protection class||IP 68|
|Permissible ambient temperature||-20 to 55 celsius|
|Pressure monitoring||Integrated pressure sensor continuously monitors inner pressure|
|Panning range||270-degree endless pan|
|Angle of rotation||Continuous|
- * Crawler for DN300-2000mm lateral sewer mainlines.
- * Steerable to traverse bend pipes and navigate over obstacles.
- * Manual controlled camera-lift to ensure the camera head in the center position of the pipe.
- * Two sizes tires inside the package.
- * 4-wheel drive can travel forward,reverse and turn around.
Camera Head Camera sensor:
- * 1/4”540TVL Sony CCD
- * Sensitivity: 0.01 LUX;Capable of working in the dark
- * Zoom:120 times (10X optical, 12X digital)
- * Illumination:4*10w High brightness LED lights
- * Rotation: 360°pan, 180°tilt
- * Auto leveling;Auto focus 55
- * Working temperature: -20℃~55℃
- * Diameter: 90mm
- * Weight: 2.2KG
- * Waterproof level: IP68
- * 12.1“ sunlight viewable touch control LCD
- * Record inspections to 64GB SSD
- * Water-proof standard:IP53
- * All featured software regulates crawler motion,cable
reel winding up and persistently measures pressure,
slope and distance,ect.
- * Size:L426mm*W266mm*H52mm
- * Optional manual or auto cable winding up component;
- * Material: Aviation aluminum+PC plastic
- * Meter-counter:Distance constantly displayed on screen;
- * erro<10cm
- * Waterproof: IP53;
- * Reinforced semi-rigid cable;
- * Load capacity:150KG.OD:9mm
- *120m standard cable length
IPS was started with a simple goal ,to provide our Chinese customers ,who were engaded in water monitoring and/or municipal sewer line inspection and rehabilitation ,with affordable devices.
* In 2009,we began our business with self-made multi-direction endoscope.But it was not very sucessful at that time.

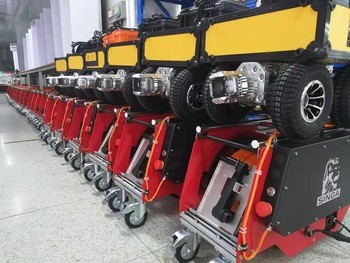

* In 2013,we came back with SINGA crawlers,which was equipped with powerful illumination to capture and record pipe defects.
* In2015,we added explosion-proof and motor-driven cable drum to our carriage.And setted out to develop our own UV curing,3D sonar/laser system.
Thanks to continuous efforts in customers' oriented technical innovations and excellent service ,IPS has witnessed a series of huge success.Now we are the leading manufacturer of pipeline CCTV inspection equipment in China ,and we are ready to lead international pipe inspection&rehabilitation industry in the future.
