Item specifics

Pipe inspection camera
Robotic Crawler
Cable Drum
Motor-driven/ Manual
Cable Length
Application Range
DN 100 and Up
Reporting Software
Compatible with Wincan
14 powerful led lights



Drain Sewer Line Camera Locator SystemDrain Sewer Line Camera Locator SystemDrain Sewer Line Camera Locator System

This high performance sewer camera with locator system ,can be used to inspection laterals from 100mm to 600mm in diameter.The SD-1050 Camera heads features a 540TVL P/N sensor to capture detailed image of pipe defects,including poor joints,structure fractures,and root intrusions.Inspection videos are transferred from the sensor to the state-of-heart-art monitor via a compact cable drum system.And the data is compressed into H.264 video format,which can be used to generate reports with our integrated reporting software or third party software.The winch will automatically wind up or unwind the cable according to the feedback of a precice tension sensor.And this means the carriage can be easily feed into drainage lines from manhole.

Technical data
Product classificationSewer Camera Locator
Inspection rangeapprox.DN 100 and up
Dimensionø 90MM
Weightapprox. 7 kg
Tractor operationyes
Camera reorientYes
FocusManual focus
Lighting14 led lights.
Protection classIP 68
Permissible ambient temperature-20 to 55 celsius
Test pressure10-15PSI
Pressure monitoringIntegrated pressure sensor continuously monitors inner pressure
Panning range180-degree endless pan
Viewing range+/-120°
Angle of rotationContinuous
Sensor (inch)1/4“
TV standardHD
Explosion protectionoptional
Image resolution540TVL

Detail Image:

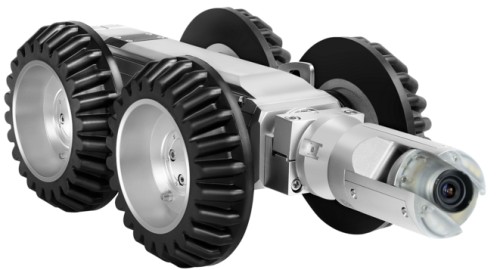

S100 Sewer Camera Carriage without Camera-lift

*   For pipe DN100-600

*   Steerable to climb over obstacles and bend pipes

*   Turn Radius:down to 0.0”

*   Sensors:pitch, slope, pressure

*   Pressure Rating:1 bar

SD-1050 Camera Head With IP68 Waterproof Capacity

Drain Sewer Line Camera Locator System

*   Camera Sensor:color Sony ¼” CCD

*   Resolution:540TVL

*   Pressure Rating:1 bar

*   Focus:auto shutter; manual focus

*   Illumination:controllable shadowless 14 led ring

*   Articulation:180-degree tilt; infinite pan

*   Sensing:pressure

*   Size:diameter: 52mm;length: 123mm

*   Weight:1.6 lb (0.5 kg)

*   Material:aluminum

Auto/Manual Cable Drum,controlled via wireless Joysticks.

*   Optional manual or auto cable winding up component;

*   Material: Aviation aluminum+PC plastic

*   Meter-counter:Distance constantly displayed on screen;erro<10cm

*   Waterproof: IP53;

*   Reinforced semi-rigid cable;

*   Load capacity:150KG.OD:9mm

*   120m standard cable length(100-300m customizable)

*   Size: 70cm*44cm*48cm

*   With emergency stop switch

12.1" Sunlight Presentable LCD Touch Monitor

*  Record inspections to 64GB SSD
*  Water-proof standard:IP53
*  All featured software regulates crawler motion, cable reel
   winding up and persistently measures distance ,inner pressure
*  Size:L426mm*W266mm*H52mm

IPS was started with a simple goal ,to provide our Chinese customers ,who were engaded in water monitoring and/or municipal sewer line inspection and rehabilitation ,with affordable devices.

        *  In 2009,we began our business with self-made multi-direction endoscope.But it was not very sucessful at that time.

        *  In 2013,we came back with SINGA crawlers,which was equipped with powerful illumination to capture and record pipe defects.

        *  In2015,we added explosion-proof and motor-driven cable drum to our carriage.And setted out to develop our own UV curing,3D sonar/laser system.

Thanks to continuous efforts in customers' oriented technical innovations and excellent service ,IPS has witnessed a series of huge success.Now we are the leading manufacturer of pipeline CCTV inspection equipment in China ,and we are ready to lead international pipe inspection&rehabilitation industry in the future.
