Pillow Pipe Stoppers UP, PUP | Pneumatic Pipe Plug
- Model
- UP, PUP
Review
Description
These pipe stoppersare mainly used in various sewers and storm sewers. Their advantage is in their ability to be inserted into the sewer through the standard gullies. The speci- al Kevlar reinforcement enables us to manufacture these stoppers in large diameters. The standard product line ranges from 1000 to 2200 millimetres.

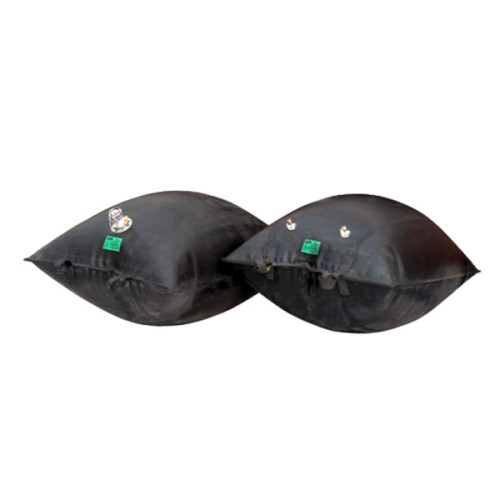

Pillow Pipe Stoppers UP, PUP
Type |
| UP 100/140 | UP 140/180 | UP 180/220 | PUP 100/140 | PUP 140/180 | PUP 180/220 |
Part - No. |
| 1110 | 1111 | 1112 | 1225 | 1226 | 1227 |
Pipe diameter | mm | 1000–1400 | 1400–1800 | 1800–2200 | 1000–1400 | 1400–1800 | 1800–2200 |
Operating pressure | bar | 0,7 | 0,6 | 0,5 | 0,7 | 0,6 | 0,5 |
Test pressure | bar | 1,05 | 0,8 | 0,65 | 1,05 | 0,8 | 0,65 |
Back pressure | bar | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 |
Width of pillow | mm | 1450 | 2050 | 2650 | 1450 | 2050 | 2650 |
Length of pillow | mm | 2300 | 3200 | 3900 | 2300 | 3200 | 3900 |
Weight | kg | 40 | 73 | 115 | 43 | 77 | 120 |
Bypass |
|
|
|
| 2“ | 2“ | 2“ |
