IPS Robot

Satellite system STL for lateral preparation

Group Main Sewer
Min. Order 1 piece
Terms of Payment all
Update Time 2019-07-19
  • Description
  • Product review

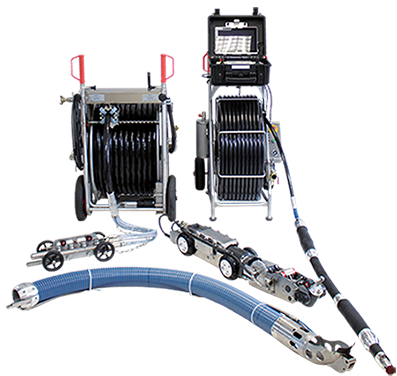

Satellite system



STL


  • · range of application in main sewer DN 200 - 600 / 8" - 24"Satellite system STL
  • · insertion into laterals DN 100 - 150 / 4" - 6" possible
  • · for all preparatory rehabilitation work of laterals / service connection
  • · insertion of the system form the main sewer, only 1 manhole access required
  • · enables the removal of deposits, roots or other obstacles
  • · cutting and opening the pipe branches after rehabilitation
  • · pipe joints tightness test, inspection and high pressure flushing
  • · insertion into laterals DN 100 - 150 / 4" - 6" possilbe
  • · the both cutting robot systems can be used individually without any restriction
  • · individual connection to other carriages possible

Satellite system



STL


  • range of application in main sewer DN 200 - 600/8" - 24"
  • insertion into laterals DN 100 - 150/4" - 6" possible
  • electrical hose drive with different wheel sets for the nominal diameter range DN 200 - 600/8" - 24"
  • coupling elements DN 200 - 600/8" - 24" for connection to the IMS cutter TURBO
  • additional rear camera with lighting and holder for IMS cutter TURBO
  • transport pipe for IMS cutter MICRO automatic plus /
    MICRO premium
  • operation by the universal control unit of the IMS cutter TURBO
  • waterproofed device with 0.8 bar nitrogen filling
  • protection class mind. IP 54
  • toolbox with construction site tools, valve extension, spare lamps, spare screws, extension parts, spare part overview and operating manual
  • dimension DN 200 - 250/8" - 10" (without TURBO carriage)
    L x W x H: approx. 2700 x 176 x 160 mm/106" x 7" x 6"
  • dimension from DN 250 - 600/10" - 24" (without TURBO carriage)
    L x W x H: approx. 2450 x 198 x 150 mm/96" x 8" x 6"
  • weight (without TURBO carriage) approx. 35 kg
If you need more information about this product, please contact us.
