IPS Robot

MICRO light plus (DN 80-250)

Group Indoor Installation
Min. Order 1 piece
Terms of Payment all
Update Time 2019-07-19
  • Description
  • Product review

MICRO

light plus

    large range of application in pipes from DN 80-150/3’’-6’’ (inside diameter) without conversion, work, optionally extendable up to DN 250/10’’

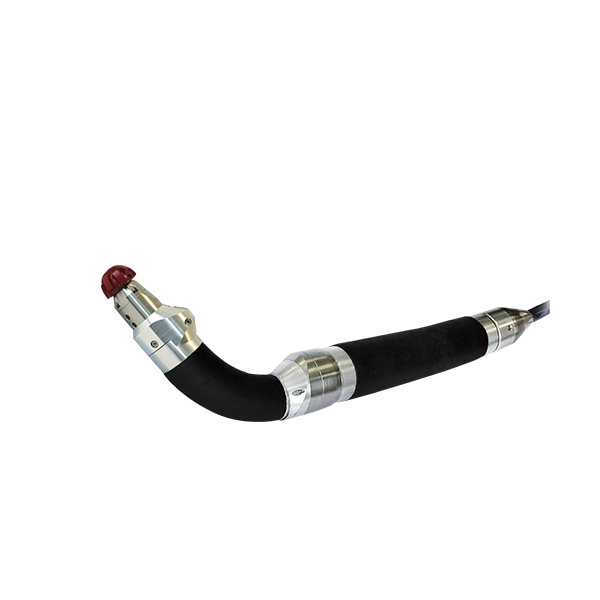

  1. excellent flexibility in bends up to 90° in DN 100/4’’ through rotating and swivelling of the cutter head
  2. high work efficiency due to axial feed of approx. 50 mm/2’’
  3. pneumatic clamping unit allows use also in vertical pipes
  4. only very small access openings required
  5. extremely high cutting force through powerful air motor
  6. flexible operation by cable remote control and and removable monitor
  7. very precise control of the cutter through joystick
  8. permanent monitoring of cutting operation due to integrated colour camera with air cleaning
  9. damage prevention through automatic internal pressure monitoring with signalling

MICRO

light plus

    usable from DN 80-150/3’’-6’’ (inside diameter), up to DN 250/10’’ with optional extension
  1. flexibility in bends 90° from DN 100/4’’ (stoneware, no folds or similar)
  2. axial feed approx. 50 mm/2’’

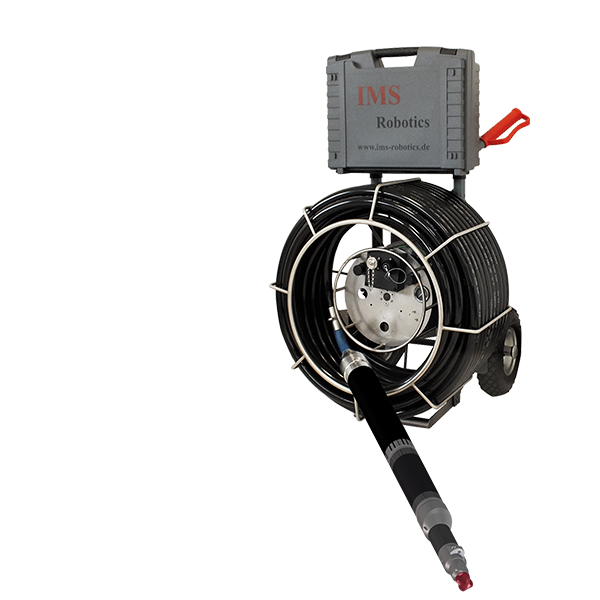

  3. 30 m/98 ft supply hose on cable reel
  4. coupling elements for fibreglass push rod
  5. 400° turning movement and approx. 90° swivelling movement with stops
  6. air-poweredcutter motor
  7. colour camera with LED
  8. permanent camera cleaning with air
  9. permanent internal pressure monitoring with signal indicator
  10. cable remote control with joystick for turning movement (sensitivity adjustable) and swivelling
  11. 3.5’’ TFT LCD monitor, storage of pictures/videos (JPEG/MPEG) with SD card, USB, date and time display
  12. cutter outside diameter: 72 mm/2.8’’
  13. overall dimension: approx. L 660 x W 550 x H800 mm/approx. L 26’’ x W 22’’ x H 31’’
  14. weight: approx. 47 kg
  15. completely assembled cutter on chassis
  16. detachable individual components
  17. accessory case with construction site tools, valve extension, replacement screws, carbide granulate cutting tool, operating manual and accessory overview
